VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Los Angeles, CA | Sightline Windows & Doors

The VLX 100 Swing / Entry Door is a modern aluminum single-entry system built around a minimalist frame profile and a multi-point locking mechanism. It’s the door homeowners in Los Angeles choose when they want a clean architectural line, serious security, and a frame that won’t sag or warp in our coastal sun. Sightline Windows & Doors is an authorized ViewLux installation partner, which means we supply, install, and warrant the VLX 100 to factory standard and AAMA installation requirements across Los Angeles. Call (509) 265-6387 to talk about your entryway and schedule a free on-site measurement.

Call (509) 265-6387

Product Overview - VLX 100 Swing / Entry Door

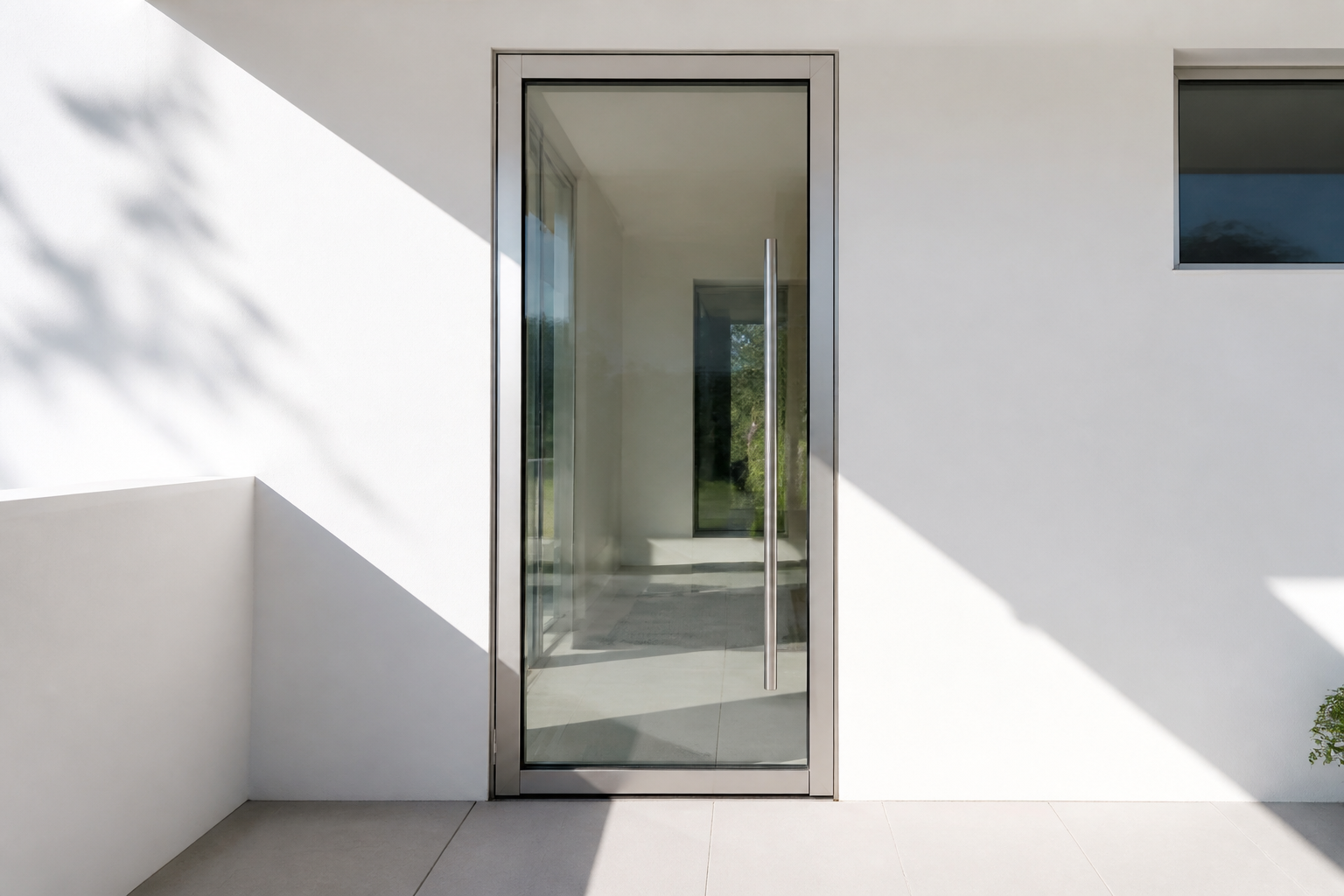

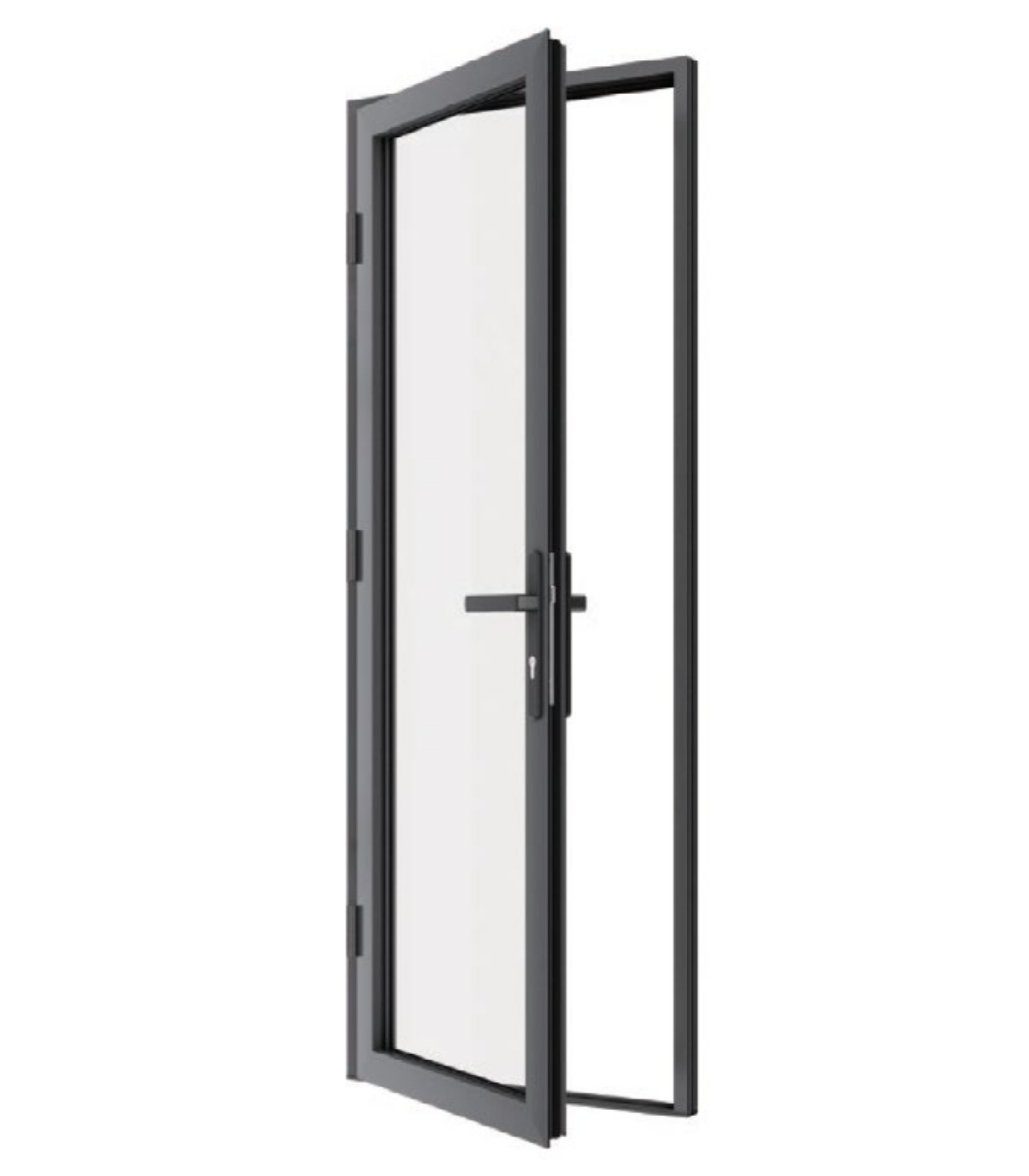

The VLX 100 is a single swing entry door with a slim, modern aluminum frame. The design thinking is straightforward: give Los Angeles homeowners a door that reads as architecture, not hardware. The frame profile measures 2.56 inches wide, which is narrow enough to disappear into a stucco or smooth-plaster wall, yet deep enough to hold the thermal break, glass package, and multi-point hardware without flex.

Why do buyers pick this series over a wood door or a bulkier aluminum alternative? Wood moves. It swells in the marine layer, shrinks in the dry Santa Ana heat, and eventually binds against the jamb. The VLX 100 doesn’t. The aluminum extrusion is straight, stable, and coated to hold its finish for years of direct Los Angeles sun exposure. The minimalist frame means more glass and less metal, so entryways feel open even on a compact porch.

The multi-point locking is the part most people don’t notice until they operate it. Instead of a single latch at the handle, the door engages multiple locking points along the height of the panel when you throw the lever. The panel seats tightly against the jamb at three or more points. It changes how the door feels when it closes: solid, flush, no rattle. For a single entry door in a city like Los Angeles, where front entries face the street and the public sidewalk, that matters.

Sightline Windows & Doors has installed the VLX 100 in neighborhoods across Los Angeles, from Silver Lake mid-century remodels to new builds in Sherman Oaks and Hancock Park replacements. The door fits a wide range of home styles because it doesn’t shout. It stays quiet and lets the surrounding design do the talking.

Technical Specifications

Here are the factory engineering numbers for the VLX 100 Swing / Entry Door, as specified by ViewLux and installed by Sightline Windows & Doors throughout Los Angeles:

• Wall thickness: 0.098-inch aluminum extrusion
• Frame profile width: 2.56 inches
• Maximum panel span: Up to 48 inches wide
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen, or no screen for a pure glass look
• Hardware: Multi-point locking as standard
• Performance compliance: NFRC-rated thermal break, AAMA 2400/2410 installation standard, AAMA 812 perimeter sealant

These numbers give you a sense of scale: a 48-inch wide panel in a 2.56-inch frame means glass dominates the door. That’s the point of the VLX 100.

Before

After

Performance Features

Thermal Efficiency – The VLX 100 carries a thermal break inside the aluminum profile, which separates the exterior face from the interior face. That reduces heat transfer through the metal. In Los Angeles, where afternoon sun pounds west-facing entries, an NFRC-rated thermal break means the interior frame doesn’t turn into a radiator. Pair it with Low-E glass and you get a door that actually helps your cooling bill rather than fighting it.

Acoustic Performance – Aluminum is dense, and when the panel seals against a properly set jamb, it blocks a meaningful amount of outside noise. If you live near a busy street in Los Angeles, like Venice Boulevard or Ventura Boulevard, ask about laminated glass. A laminated interlayer dampens sound transmission noticeably and is the single best upgrade for street-facing entry doors.

Airtightness & Weather Seal – The VLX 100 is engineered for a tight perimeter seal when installed correctly. That’s partly the door and partly the installation. Sightline Windows & Doors applies AAMA 812 compliant low-expansion foam at every perimeter joint, then seals the exterior with a continuous weather barrier. The result is an entry that doesn’t leak conditioned air around the edges.

Waterproofing – A Los Angeles entry door has to handle winter rain driven sideways against the facade. The VLX 100 uses a sill design that directs water outward, and our installers flash the rough opening so that any water that gets past the exterior cladding drains down and out, never into the wall cavity. We don’t rely on caulk alone. The foam seal, flashing, and sill work together.

Wind Resistance – Aluminum is inherently rigid, and the VLX 100 is wind-load rated for the local climate requirements we see in Los Angeles. That matters most in the hills and canyon areas, like the Hollywood Hills and Mount Washington, where wind funnels through the passes. The 0.098-inch wall thickness gives the frame the stiffness it needs to resist deflection without adding visual bulk.

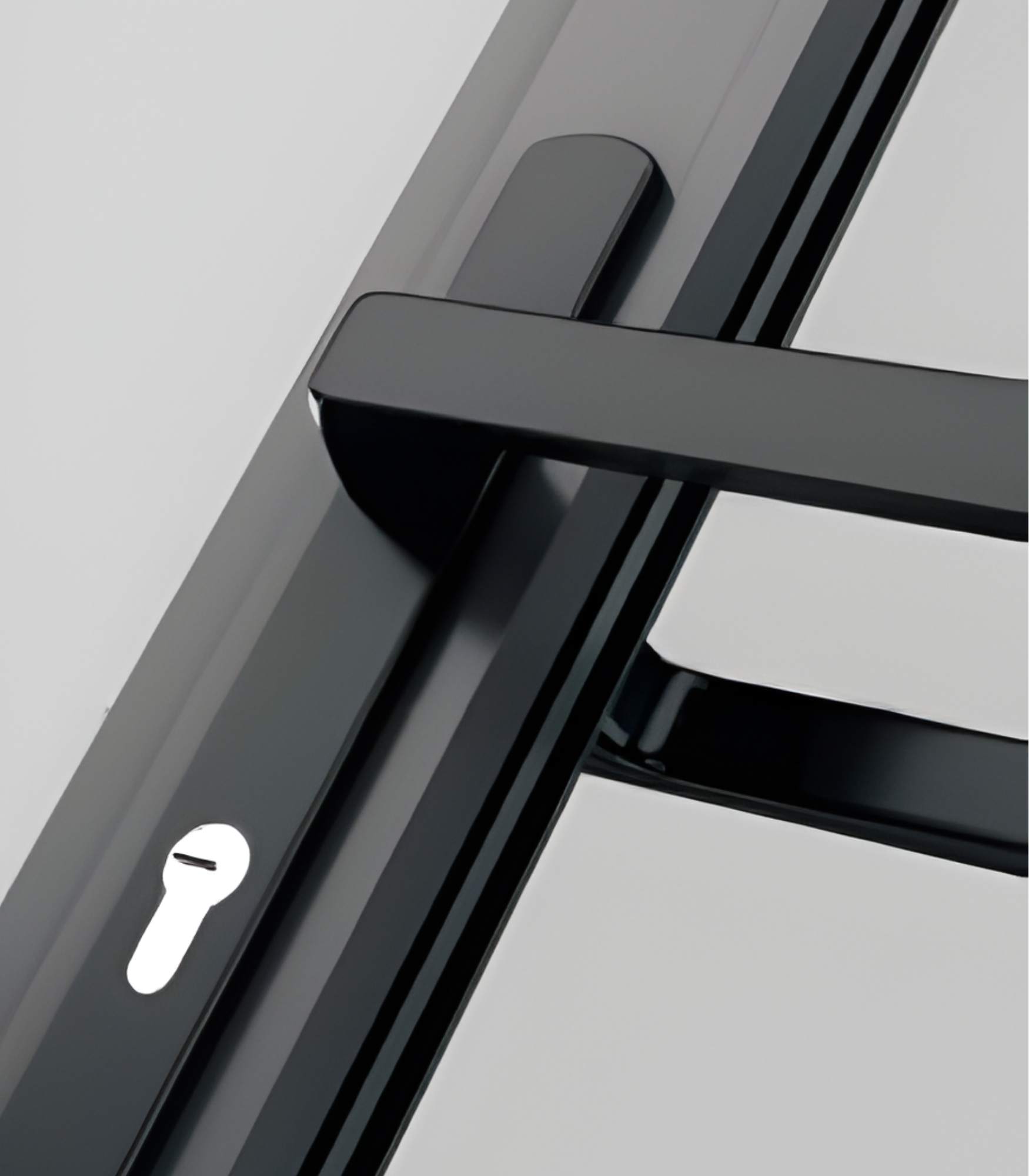

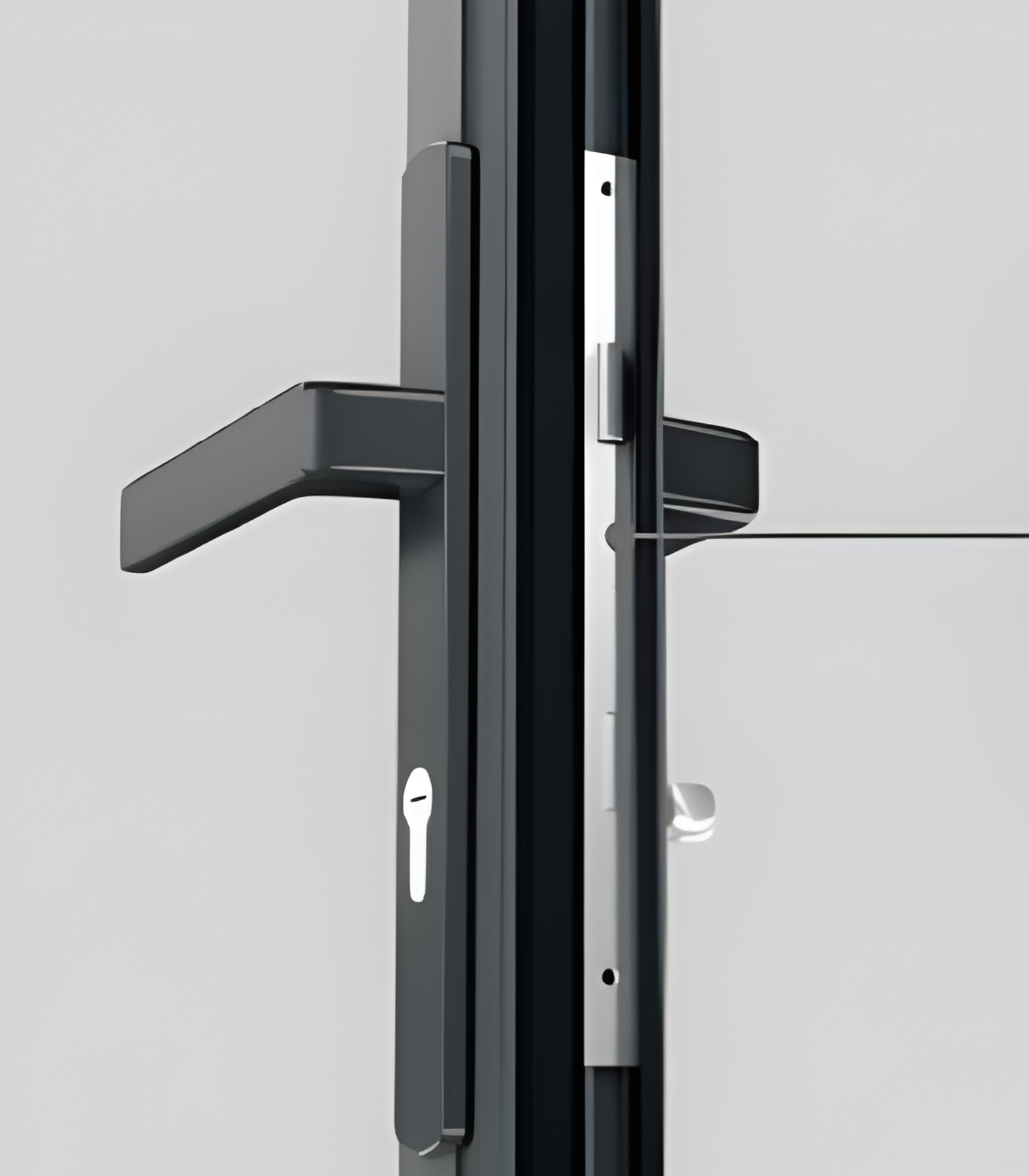

Security & Hardware – The multi-point locking system engages at the top, middle, and bottom of the panel. That’s a meaningful step up from a standard single deadbolt. When the door is locked, the panel is anchored to the jamb at multiple points, which makes forced entry dramatically harder than prying a single latch. We recommend laminated glass as an additional layer for ground-floor entry doors in Los Angeles.

Color & Glass Options

The VLX 100 comes in six finishes. Premium Black is the runaway favorite for modern Los Angeles homes, it reads as architectural and pairs beautifully with black window frames from the same ViewLux family. Pure White suits Spanish and coastal styles, and it stays cooler to the touch in direct sun. Anodized Silver is our recommendation for mid-century remodels that want an original aluminum look without the corrosion problems of 1960s metal. Bronze brings warmth to traditional and Mediterranean facades. Champagne is a softer metallic that works well on stucco in warm neutral tones. Teak Wood gives the texture and warmth of wood grain with none of the maintenance, and it’s a smart choice for Los Angeles homeowners who want a wood look without repainting every few years.

Glass selection depends on exposure. Low-E is the standard upgrade for west-facing entries. Frosted or obscure glass gives you privacy at the front door without curtains. Tempered is code-required for most full-lite doors, and laminated adds both security and sound reduction. If you’re within earshot of a major boulevard in Los Angeles, laminated is worth the extra cost. A retractable screen is available for homes that want cross-ventilation on cooler evenings.

Installation by Sightline Windows & Doors in Los Angeles

Here’s what our installation process looks like for a VLX 100 entry door in Los Angeles, and why it matters as much as the door itself. Improper installation is the fastest way to destroy a door’s performance and void a manufacturer warranty. We see it constantly: doors set out of level, gaps stuffed with fiberglass, no foam seal, no flashing, and the homeowner left with a door that sticks in summer and leaks in winter.

Pre-install inspection. We measure the rough opening, check the subfloor and threshold for level, and confirm the stud condition. Every Los Angeles home has quirks. Older houses in Echo Park or West Adams often have out-of-square openings. We account for that before the door is ordered, not after it arrives.

Setting the frame level, plumb, and square. We shim the jamb and verify it with a laser level in both directions. An out-of-plumb door will never seal correctly, and the multi-point lock will bind. This is the step that separates a professional install from a handyman job.

AAMA 812 perimeter seal. We apply low-expansion foam at every perimeter joint between the frame and the rough opening. Low-expansion means the foam won’t bow the aluminum as it cures. Then we install proper flashing to direct water away from the opening.

AAMA 2400/2410 standard compliance. Our entire installation follows the AAMA 2400/2410 practice for fenestration installation. That’s the governing standard for window and door installation in the U.S., and it covers exactly what you’d want: sealing, flashing, anchoring, and drainage.

Water test and final adjustment. After the door is sealed, we run water over the exterior to confirm drainage, then adjust the hinges, latch, and multi-point hardware so the door operates with light finger pressure. We don’t leave until the panel closes flush and locks without resistance.

Los Angeles building codes require tempered glass in full-lite entry doors, and our installs meet or exceed local requirements. We don’t cut corners on anchoring, and we make sure the door is manufactured and installed to keep the ViewLux factory warranty intact.

Frequently Asked Questions - VLX 100 Swing / Entry Door

Get a Quote - VLX 100 Swing / Entry Door in Los Angeles

If you’re ready to see the VLX 100 on your entryway, call Sightline Windows & Doors at (509) 265-6387. We’ll schedule a free on-site measurement anywhere in Los Angeles, walk you through your glass and finish options, and give you a written line-item quote with no change orders after the fact. Let’s get your entry right.

Written by the team at Sightline Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
