VLX 100 Pivot Door

VLX 100 Pivot Door in Los Angeles, CA | Sightline Windows & Doors

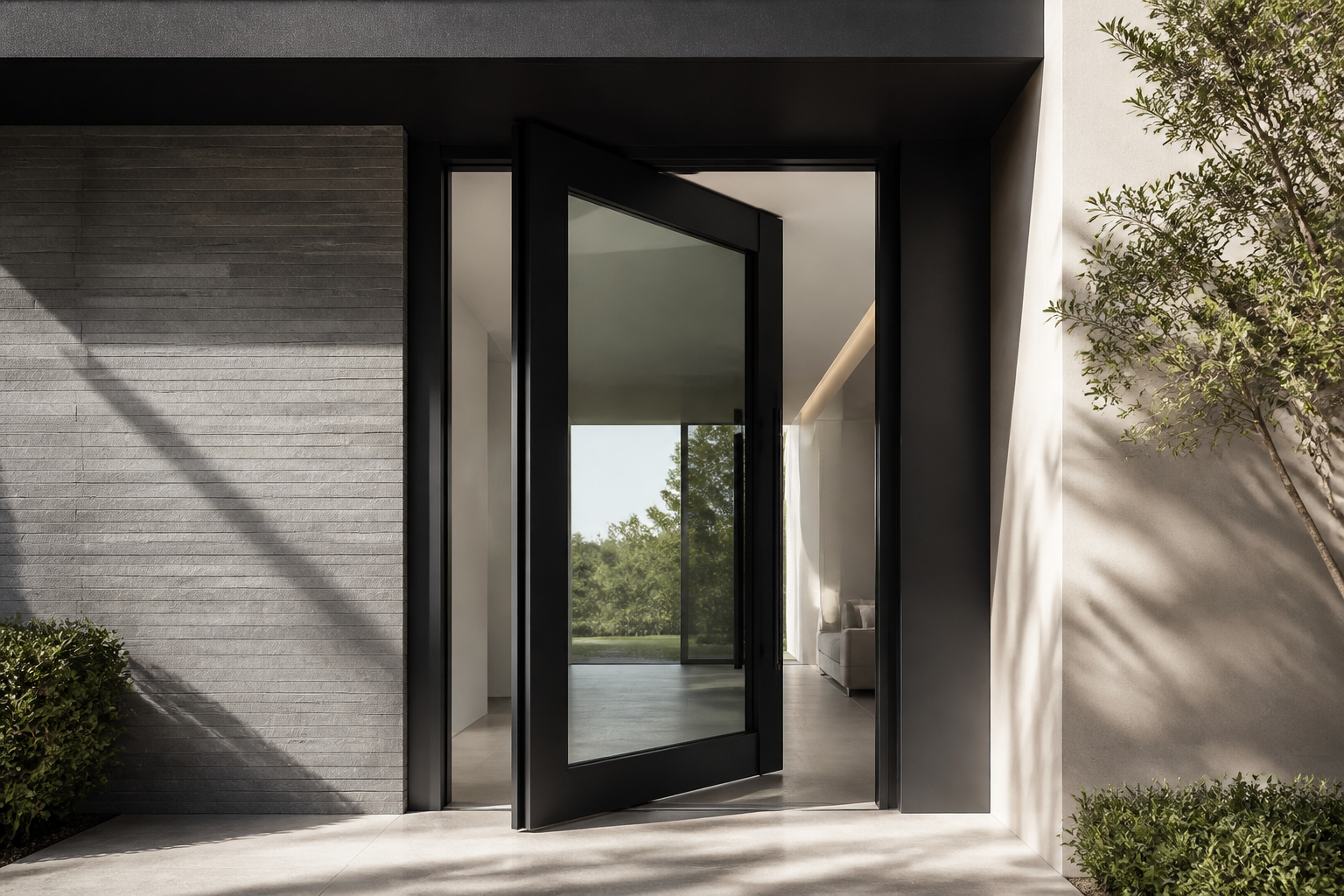

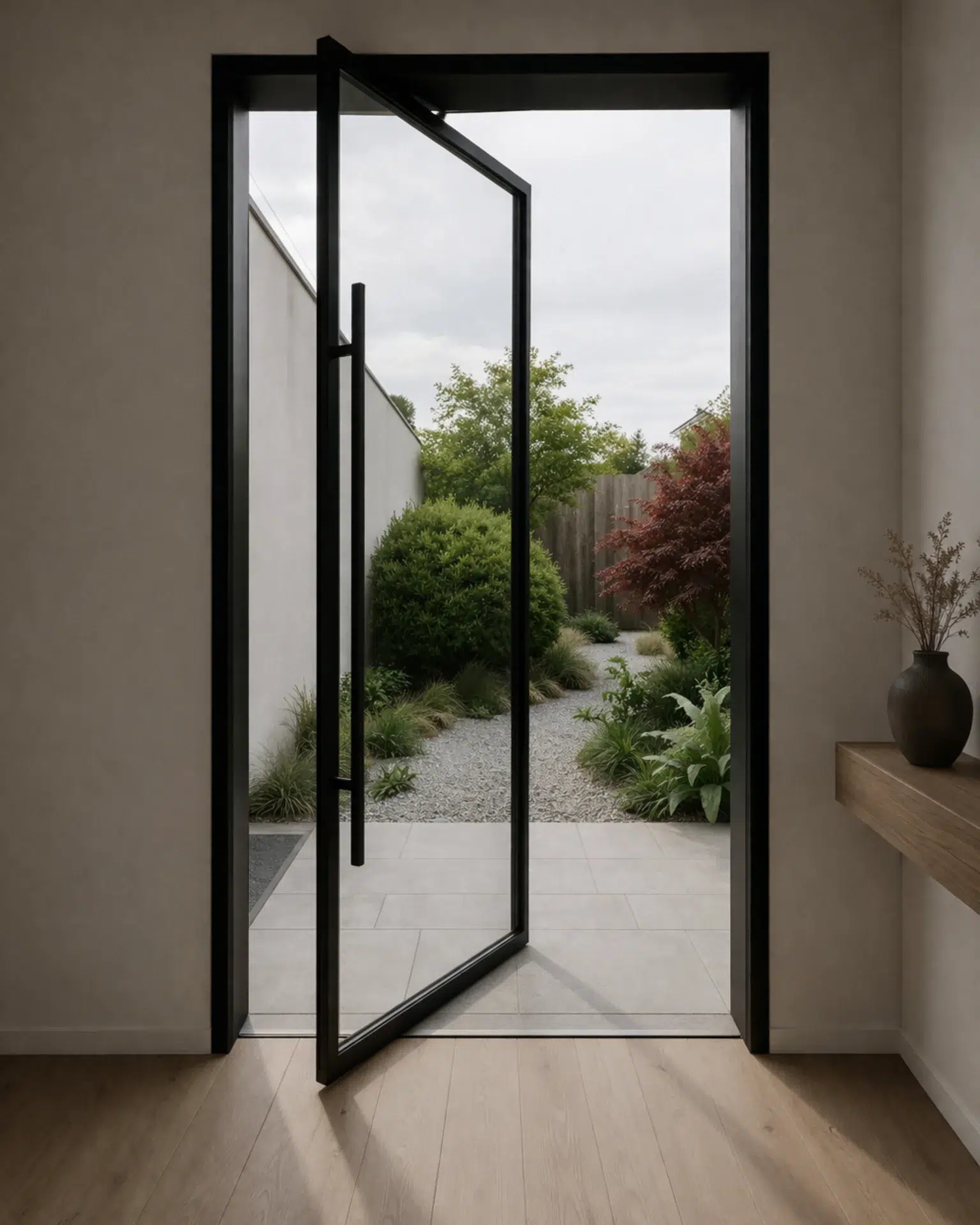

The VLX 100 Pivot Door is a heavy-duty aluminum pivot door that rotates on a vertical center axis instead of traditional side hinges, allowing oversized glass panels and spans up to 60 inches wide by 120 inches tall. It’s the kind of entry statement Los Angeles architects and homeowners spec when a standard hinged door won’t carry the design. Sightline Windows & Doors is an authorized ViewLux installation partner serving Los Angeles and surrounding neighborhoods, which means you get the factory product with a local crew that installs it to AAMA standards. Call (509) 265-6387 to talk through your project or schedule a free on-site measurement.

Call (509) 265-6387

Product Overview - VLX 100 Pivot Door

The VLX 100 exists for one reason: a pivot door changes how a room feels when you enter it. Instead of swinging from a side jamb, the door rotates on a vertical axis set in from the edge, so a panel that would be unwieldy as a hinged door moves with surprising ease. You see this style in newer Bel Air and Hollywood Hills builds, in glass-heavy modern remodels across Venice and Culver City, and in commercial lobbies downtown. It reads as an architectural statement, not just an entryway.

The extrusion is aluminum with a profile width of 2.56 inches and a wall thickness of 0.098 inches. That’s a sturdier cross-section than what you get on a typical storefront door, and it’s the reason the VLX 100 can carry the oversized glass spec. We’ve installed these in Los Angeles homes where the door is the entire front elevation, and the frame has to stay square under wind load, heat, and daily use. The pivot hardware is engineered for the weight, so the door glides rather than sags. Buyers choose this series over cheaper pivot systems because of that rigidity, the range of finish options, and because ViewLux stands behind the engineering. Sightline handles the part that makes it perform: the install.

Technical Specifications

• Frame material: Extruded aluminum, 0.098″ wall thickness
• Profile width: 2.56 inches
• Maximum span: Up to 60″ wide × 120″ tall
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Glass makeup: Single lite or insulating glass unit, depending on performance requirements
• Impact option: Laminated glass available for coastal and hillside wind zones
• Thermal performance: Thermal break technology, NFRC-rated
• Installation standard: AAMA 2400/2410 compliant
• Perimeter sealing: AAMA 812 certified low-expansion foam sealant

Before

After

Performance Features

Thermal Efficiency - The VLX 100 frame includes a thermal break that separates the interior and exterior aluminum, reducing heat transfer through the metal. In Los Angeles, where summer sun hits west-facing entries hard, pairing the frame with Low-E glass keeps cooling bills reasonable and the door surface comfortable to touch.

Acoustic Performance - Laminated glass in an oversized pivot door does real work cutting street noise. We’ve installed VLX 100 units on main arteries in Sherman Oaks and West Hollywood where traffic is constant, and the difference between laminated and standard lite is the difference between hearing every motorcycle and hearing a low murmur.

Airtightness & Weather Seal - The pivot assembly and perimeter weatherstripping are designed to keep air where it belongs. Sightline applies AAMA 812 low-expansion foam sealant on every perimeter joint during installation, which is the step most DIY and cut-rate installs skip. That sealant is what gives the door its real airtightness rating in the field.

Waterproofing - A pivot door with an 8-foot-tall glass panel catches a lot of rain when storms come through Los Angeles. The VLX 100’s sill design plus our AAMA 2400/2410 installation method keeps water outside. We water-test every pivot door install before cleanup, and we don’t call the job done until the doorway is dry on the inside.

Wind Resistance - Oversized doors in Los Angeles hillside locations face real wind load. The 0.098″ wall extrusion and heavy pivot hardware on the VLX 100 hold the panel stable. For homes in high-wind exposure zones, we recommend the laminated glass option, which also adds impact resistance. We spec the door to match the local climate requirements for your specific address.

Security & Hardware - A pivot door needs hardware that handles weight differently than a hinged door. The VLX 100 ships with pivot hinges and locking hardware designed for the panel size. Laminated glass adds forced-entry resistance. The door locks at the pivot point and at the strike, which is a better security profile than a single-point lock on a standard door.

Color & Glass Options

The VLX 100 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black is the default choice for modern and contemporary Los Angeles homes, especially paired with black window frames. Pure White reads softer and suits coastal styles in Santa Monica and Pacific Palisades. Anodized Silver gives you that raw aluminum look that works in industrial lofts and commercial spaces. Bronze and Champagne are warmer metals that play well with mid-century homes in the hills. Teak Wood is a wood-textured finish for homeowners who want warmth without maintaining real timber.

Glass selection depends on what the door faces. Clear glass maximizes light and views. Frosted and Obscure give privacy while keeping the glow, common for entries that face a street or neighbor. Low-E coating is the energy play for direct sun exposure. Tempered glass is the safety standard, and laminated adds impact resistance and sound reduction. For most Los Angeles installations, we recommend Low-E tempered as the base, stepping up to laminated when noise or wind exposure is a factor.

Installation by Sightline Windows & Doors in Los Angeles

A pivot door is only as good as its install. We say that to every client, because we’ve repaired enough poorly-set pivot doors across Los Angeles to know the failure patterns. When a pivot door is even slightly out of level or out of plumb, the panel binds, the gap lines go uneven, and the hardware wears prematurely. Worse, an improper install can void the manufacturer warranty, and we see homeowners learn that the hard way after a budget crew walks off the job.

Sightline follows a set process. We start with a pre-install inspection of the rough opening and the existing structure, checking the subfloor and header to confirm they’ll carry the weight of a 60-by-120 panel. Then we set the frame level, plumb, and square, shimming precisely before any sealing happens. We apply AAMA 812 certified low-expansion foam sealant on all perimeter joints, meeting AAMA 2400/2410 installation standards. After the door is hung and hardware adjusted, we run a water test on the sill and threshold, check the reveal lines from inside and outside, and clean the site completely.

Los Angeles brings its own considerations. Hillside homes get wind. West-facing entries get direct afternoon sun that tests thermal expansion. Coastal areas in the South Bay deal with salt air that punishes cheap hardware. A proper install accounts for all of that. We’re local. We know what these doors do in this climate because we’ve been installing them here for years.

Frequently Asked Questions - VLX 100 Pivot Door

What is the lead time for the VLX 100 Pivot Door? Most VLX 100 orders arrive 6 to 10 weeks from order confirmation, depending on glass type and finish. Lead times fluctuate with factory volume, so call (509) 265-6387 and we’ll give you the current schedule for your exact configuration.

Does the VLX 100 qualify for energy tax credits? The VLX 100 with Low-E glass can qualify for federal energy tax credits if the glazing meets the current NFRC U-factor and solar heat gain requirements. Eligibility depends on configuration and your specific tax situation. We’ll provide the NFRC documentation you need to check with your accountant.

What warranty comes with the Pivot Door? The VLX 100 is covered by ViewLux’s manufacturer warranty on the door and hardware, with coverage varying by component. Sightline provides a workmanship warranty on the installation itself. Improper installation voids the manufacturer warranty, which is exactly why you want an authorized partner doing this work.

Can I customize the size? Yes, within limits. The VLX 100 can span up to 60 inches wide and 120 inches tall. If you need something smaller or with specific proportions, we’ll work with ViewLux to get the panel sized correctly for your opening. Custom sizing does affect lead time.

How do I maintain aluminum frames? Clean the aluminum with mild soap and water twice a year, especially within a few miles of the coast where salt residue builds up. Check the pivot hardware annually and keep the track area free of debris. Avoid abrasive cleaners that scratch the finish. That’s the whole maintenance routine for a VLX 100.

Get a Quote - VLX 100 Pivot Door in Los Angeles

If you’re planning a pivot door for a Los Angeles project, start with a conversation. We’ll walk through your opening dimensions, glass needs, finish options, and a realistic install timeline for your neighborhood. Call (509) 265-6387 to book a free on-site measurement and written quote. No pressure, just numbers you can build around.

Written by the team at Sightline Windows & Doors, authorized ViewLux installation partner serving Los Angeles, CA.
